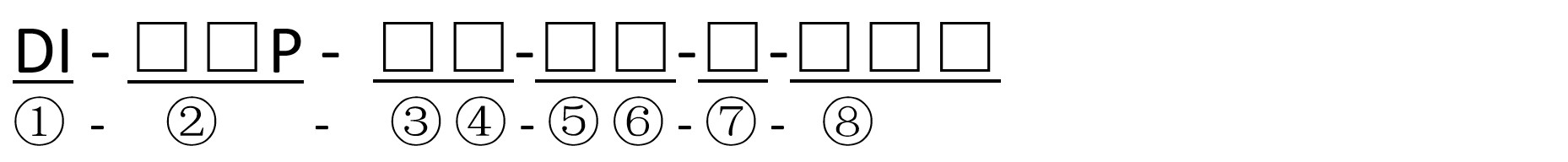

①Model:DI



②No.of Poles:01~12P



③Pin Length:L--Long Pin(Standard) ;S--Short Pin(Custom)



④Actuator Type:G--Raise Actuator(Standard);L--Low Profile Actuator



⑤Package:N/A(Tube) ;R---tape and reel



⑥ Logo:ON(Standard);xxx--(Custom)



⑦Plating:N/A--(1U');02--(2U');03--(3U');...



⑧Customer Request



Product information

FEATURES

●End stackable for standard 0. 1" integrated circuit pitch.

●Molded 0.3" integrated circuit packing outine allowing automatic insertion.

●Smaller size makes better heat convection during PC board reflow wave soldering.

●Top tape sealed to withstand wave soldering, board washing.

●AlI plastics are UL 94V-0 grade fire retardant.

●Twin contacts designed to ensure stable contact.

●Gold plated contact to ensure low contact resistance and Tin plated terminal to prevent contamination during soldering.

●RoHS Compliant



APPLICATIONS

●Numerical setting for computer terminal equipment

●Price setting for vending machines

●Programming for game machines

●Programming for industrial equipment and measuring instruments



SPECIFICATIONS

1.ELECTRICAL

●Contact ratingswitching25mA, 24VDC
non-switching100mA
●Contact resistancelinitial50mQ Max.
lafter life test100mQ Max.
●Insulation resistance1000MQ Min. at 100VDC
●Dielectric strength500VDC Min. for 60 seconds
●Capacitance between adjacent switches 5pF Max.
